This product is used for the high-baylighting and other purpose with the10W~50W integrated chip.

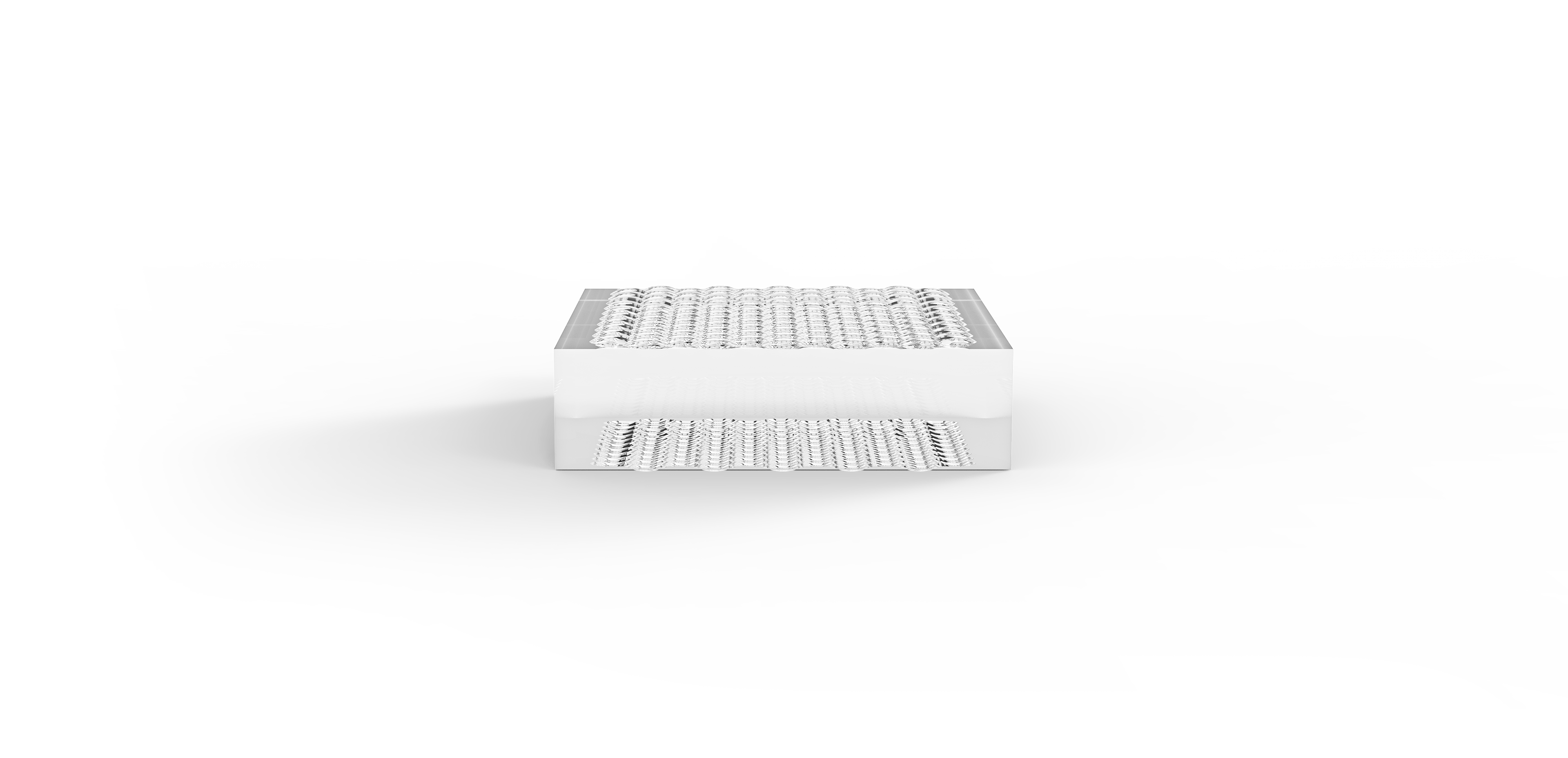

gt-40-5
Downloads
Sizes
Diameter: 40mm
Height: 12mm
Edge thickness: 10.7mm
FWHM: 100°
Special features
Working temp: -50-450℃
Material: Borosilicate glass

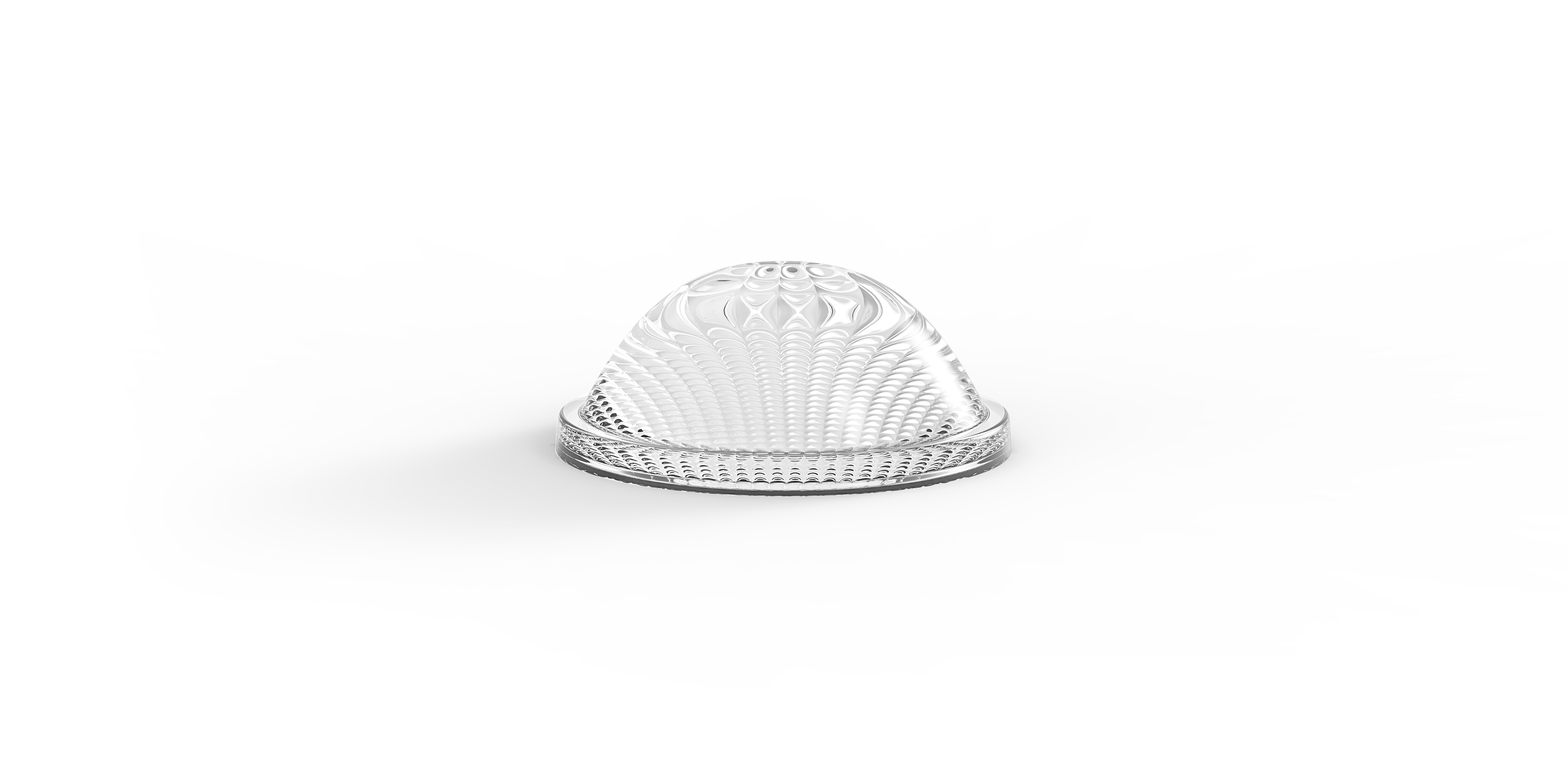

gt-40-12
Sizes
Diameter: 40mm
Height: 16.1mm
Edge thickness: 3.3mm
Angle: 83°
Special features
Eff: 31 lm/W
Material: Borosilicate glass
This product is used for the high-baylighting and other purpose with the30W~50W integrated chip.
Downloads
Downloads

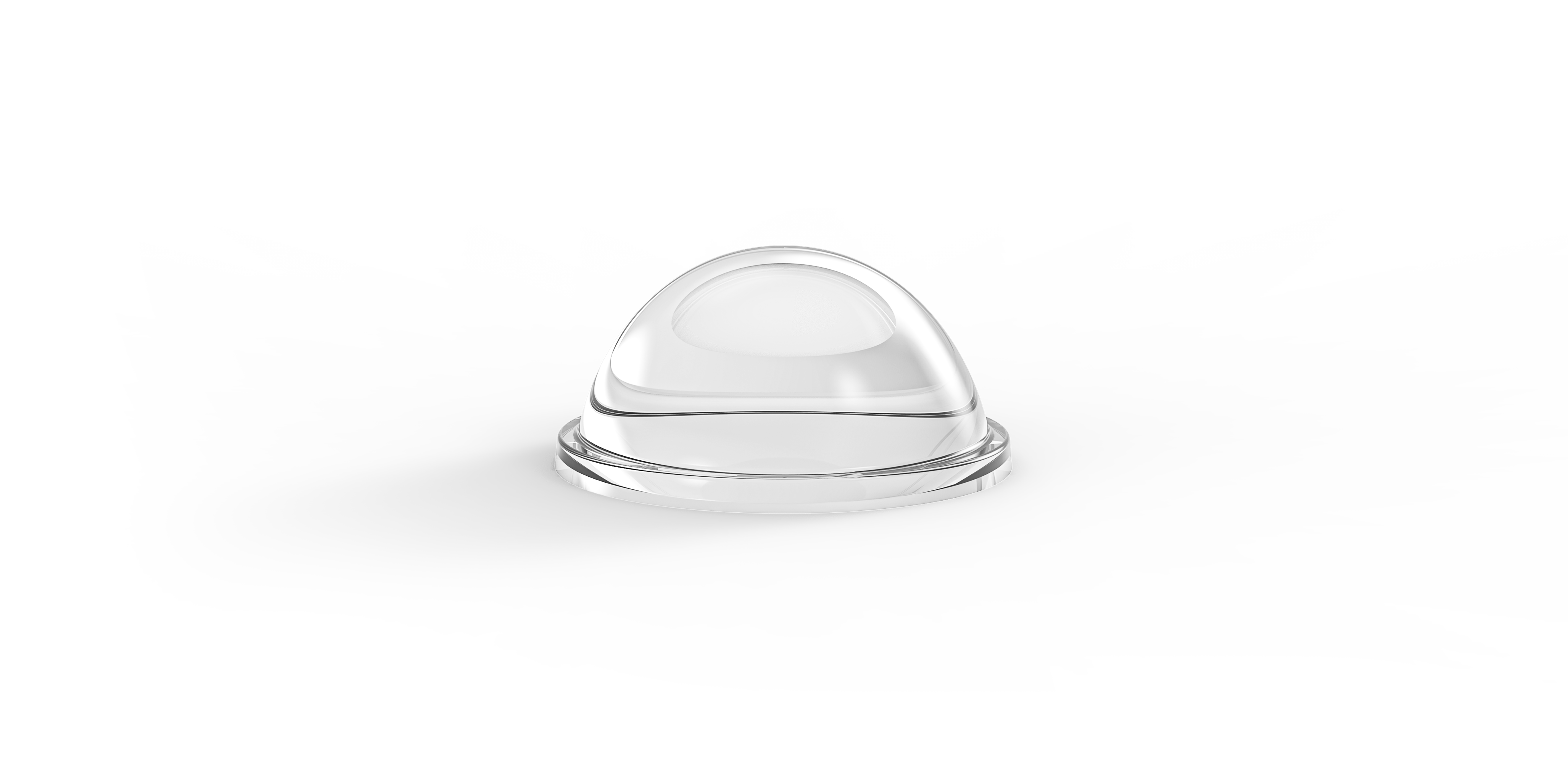

gt-49-4
Special features
Eff: 54.42 lm/W
Material: Borosilicate glass
This product is used for the high-baylighting and other purpose with the30W~100W integrated chip.
Sizes
Diameter: 49mm
Height: 23.5mm
Edge thickness: 3.6mm
Angle: 70°
In Application
JS lignting achieves customers/creates value/adds color to the world
Individual Beam for your choose
With our "Jinshun individual" service we offer you extensive options for the individualism of series products as well as support in the development of sophisticated special luminaries. In order to match Beam even more efficiently to your project requirements, further variants are available on request in addition to the series configuration. These include,for example:
√ High-power LEDs: 3000K/4000K/5000K/RGBW with CRI 90
√ Housing: Standard color or Custom color
